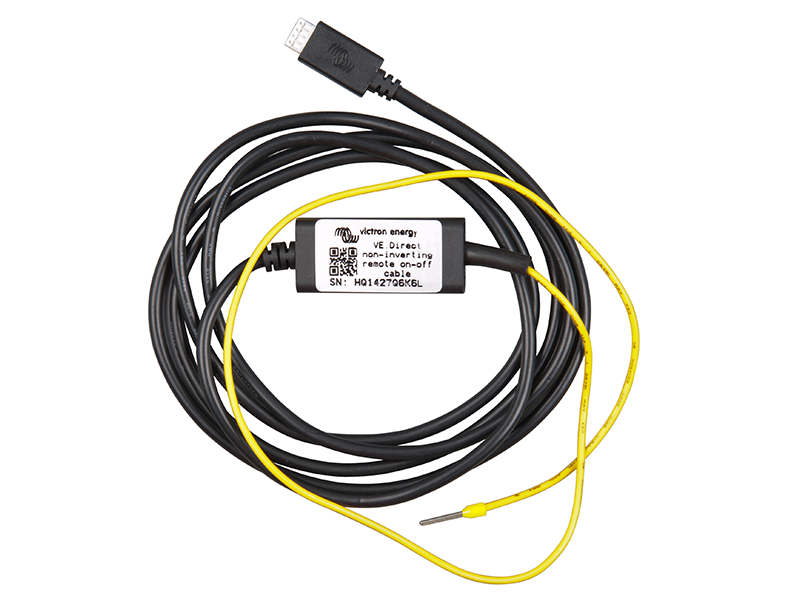

Victron Energy VE.Direct Non Inverting Remote On/Off Cable

This VE.Direct non-inverting remote on-off cable from Victron Energy can be used to remotely control BlueSolar and SmartSolar MPPT solar charge controllers that don't have dedicated remote on/off terminals. Example models are the SmartSolar MPPT 75|10 to 150|45 (larger models with dedicated remote on-off terminals do not need to use this cable).

The on-off signal is carried through the Rx pin of the VE.Direct port, and the charger will be turned on when the signal is high (over 6V) and turned off when the signal is low (less then 1V) or free-floating.

Cable length 2m.

Note: The VE.Direct port can only be used for one purpose, so when using this cable you cannot also, for example, connect to a GX device, or connect to a Bluetooth Smart Dongle on a BlueSolar controller, etc.

• Cable length: 2m
• Maximum input voltage: 70V
• Minimum 'switch on' voltage: 6V approx.
• Maximum 'switch off' voltage: 1V (or free-floating)

Part Number : ASS030550320

Bar Code : 8719076019817
