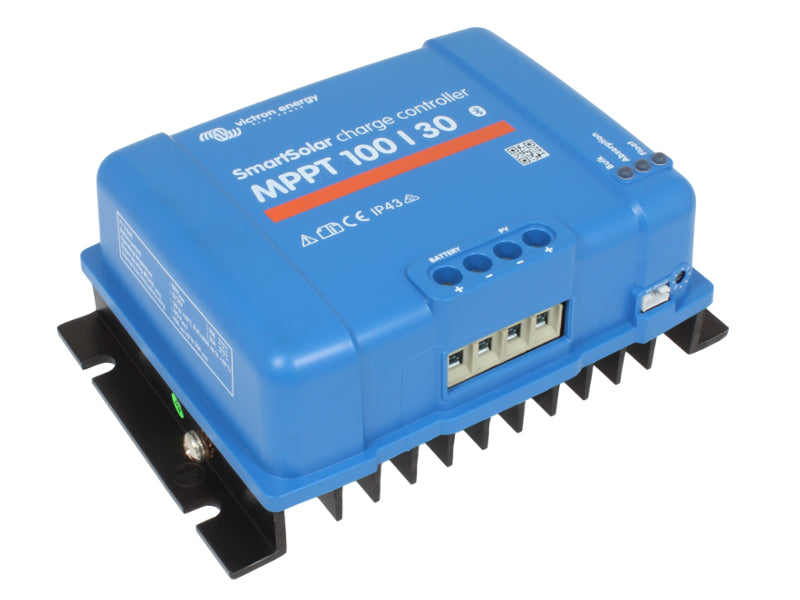

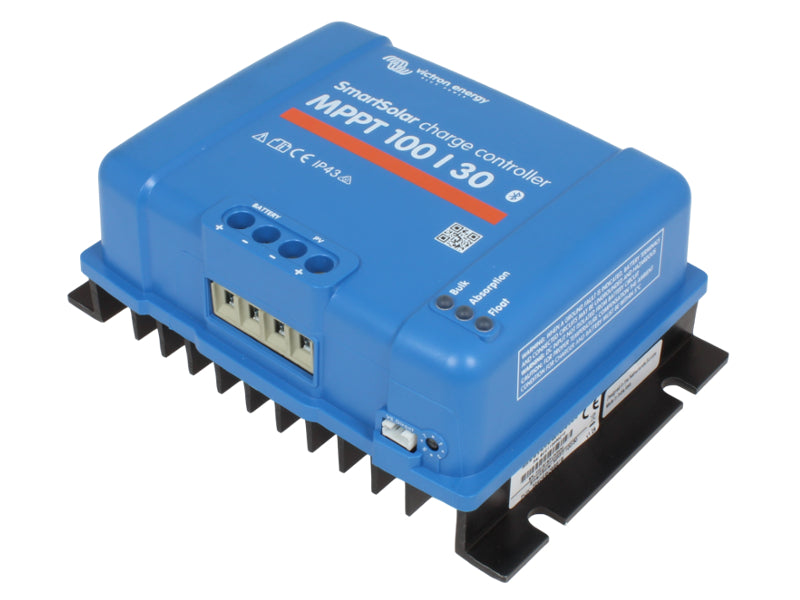

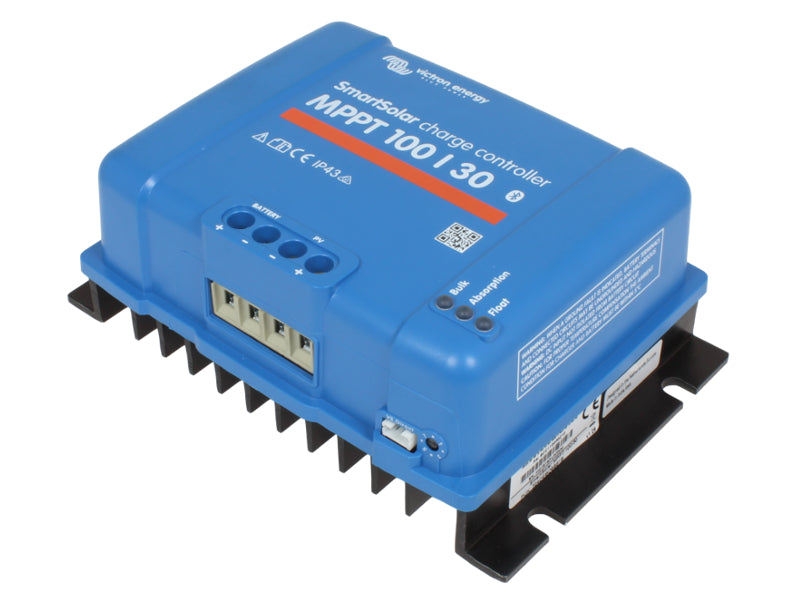

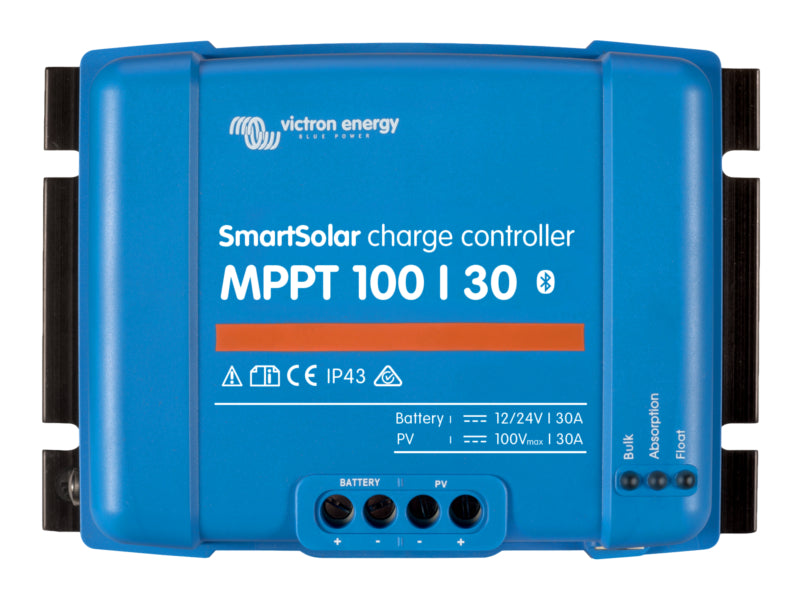

Victron Energy SmartSolar MPPT Charge Controller 100/30

Victron's Smart Solar MPPT range of controllers help you maximise the amount of energy obtained from your solar panels. Under cloudy sky conditions when light intensity is continually changing, these ultra-fast controllers can improve energy harvest by up to 30% compared with controllers using older PWM technology, and by up to 10% compared with slower MPPT models.

All of the Smart Solar models have Bluetooth communication built-in which allows you to interface with the controller via the VictronConnect app on your Apple/Android/Windows device. Through this app, you can configure an extensive range of functions on your controller and monitor its performance in real-time and via historical stats.

This controller is recommended for a maximum panel power of 440W (12V system) or 880W (24V system)

Features

• Ultra Fast MPPT (Maximum Power Point Tracking) Technology
• Bluetooth communication built-in
• Intelligent battery life management
• Programmable charge algorithm
• Battery reverse polarity protection
• Panel reverse polarity protection
• Output short circuit protection (internal fuse)
• Over-temperature protection
• 5-year manufacturer's warranty

Specifications

• System voltage: 12V/24V autoselect
• Max. rated charge current: 30A
• Max. panel power: 440W (@12V) / 880W (@ 24V)
• Charge voltage for 12V system: Absorption 14.4V / Float 13.8V (adjustable)
• Charge algorithm: Multi-stage adaptive
• Max. panel open circuit voltage: 100V
• Max. panel short circuit current: 35A
• Peak efficiency: 98%
• Self power consumption for 12V system: 30mA
• Max. cable size that fits terminals: 16mm²
• Operating temp: -30 to +60°C
• Overall dims: 186 (W) x 130 (H) x 70 (D) mm
