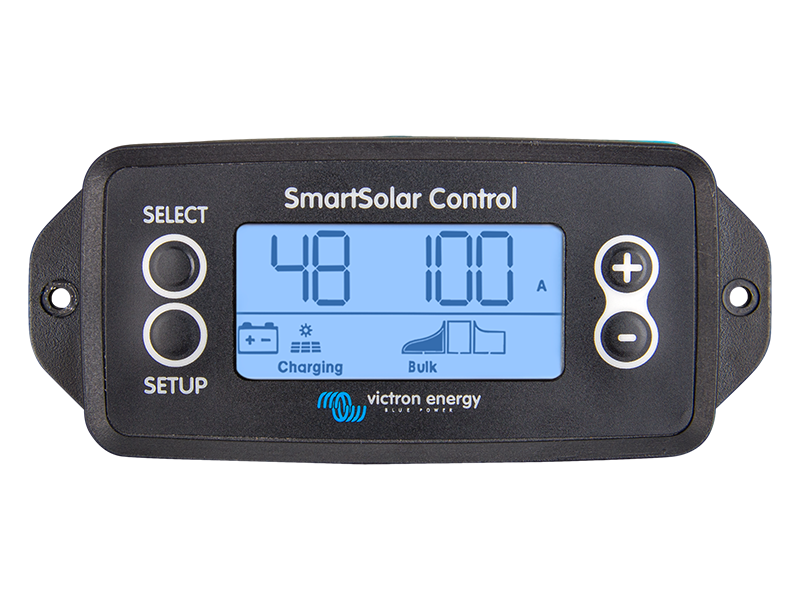

Victron Energy SmartSolar Control Display

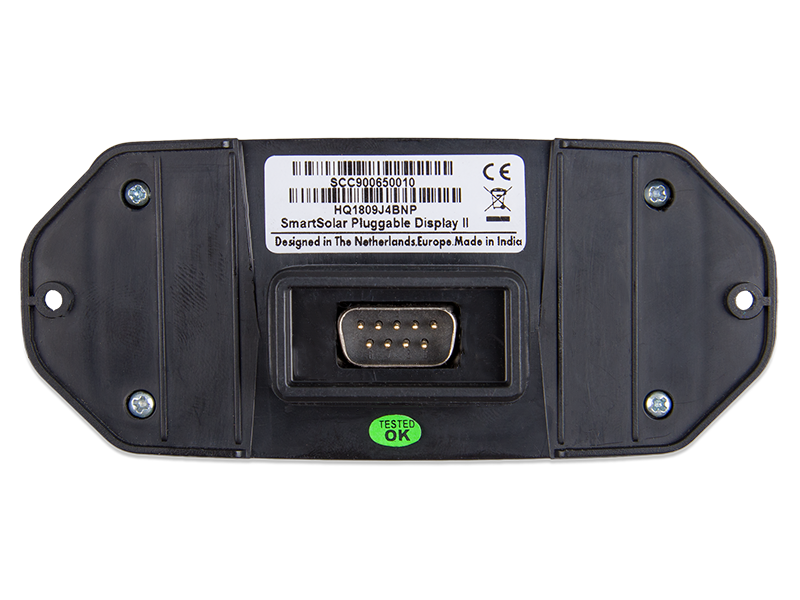

The SmartSolar Control Display is a pluggable LCD display unit that can be fitted either permanently or temporarily to any Victron Energy SmartSolar or BlueSolar MPPT controller that has a display port fitted. This port can be identified as a small plastic cover on the front of the controller with the text "display option".

With the cover removed, the SmartSolar Control Display attaches to the port on the front of the controller and provides a wide range of live and historical data related to charging performance of the solar system, as well as enabling you to configure various controller settings.

Examples of live and historical data that can be displayed are:

• PV power, yield, voltage and current
• Battery voltage, current and charge stage
• Load output state and current (only available if the solar charger is equipped with a load output)
• 30-day historical values
• Cumulative historical values over the life of the solar charger.

Overall dims: 116 (L) x 50 (W) x 25 (H) mm

Weight: 66g
