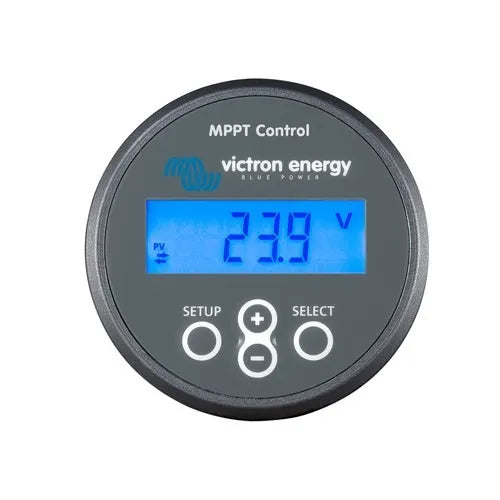

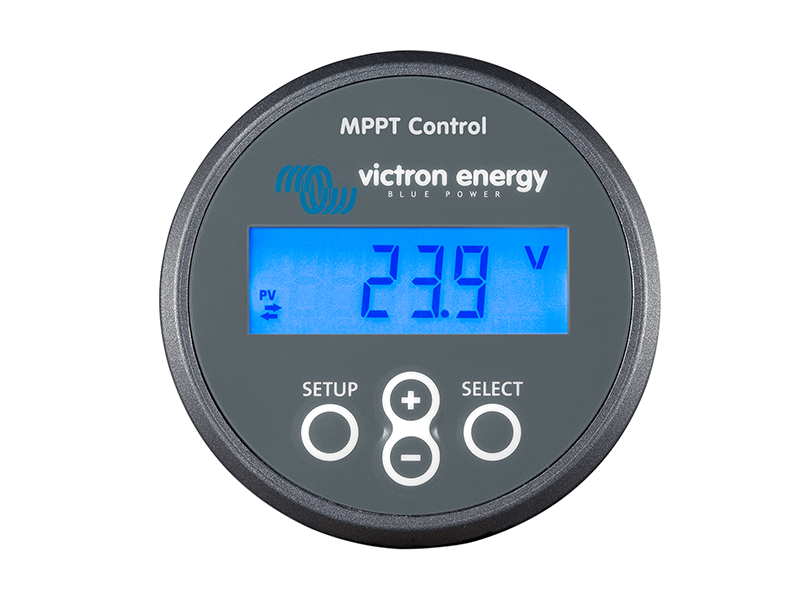

Victron Energy MPPT Control

The Victron Energy MPPT Control display is a dedicated display for the Victron Energy SmartSolar and BlueSolar MPPT solar charger range. It can show live and historical solar charger data and be used to configure solar charger settings.

Examples of live and historical monitoring that can be displayed are:

• PV power, yield, voltage and current
• Battery voltage, current and charge stage
• Load output state and current (only available if the solar charger is equipped with a load output)
• 30-day historical values
• Cumulative historical values over the life of the solar charger

Important: This unit connects to a VE.Direct port and requires a VE.Direct cable which is not included. These are available in either straight or 90° versions and in different lengths at the links below:

• Victron VE.Direct Cable (With Straight Plugs)
• Victron VE.Direct Cable (With One 90 Deg Plug)

The MPPT Control display can be used with the whole range of BlueSolar and SmartSolar MPPT solar chargers, however, for solar chargers with a data port on the front face, consider using the better suited SmartSolar Control display instead.

Specifications

• Supply voltage range when powered from battery: 6.5-95V DC
• Supply voltage range when powered via VE.Direct cable: 5V DC
• Power consumption with back-light turned off: <0.05W
• Operating temperature range: -20 to +50°C
• Power cable fuse rating: 100mA

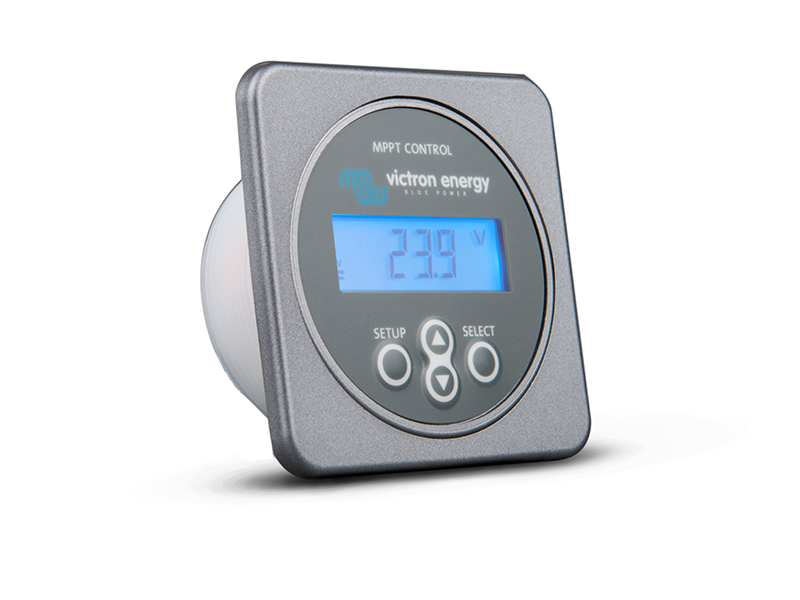

• Installation type: Flush mount
• Front diameter: 63mm
• Front bezel dims: 69 x 69 mm
• Body diameter: 52mm
• Body depth: 31mm
• Power cable length: 1.5m
• Weight: 0.05kg
