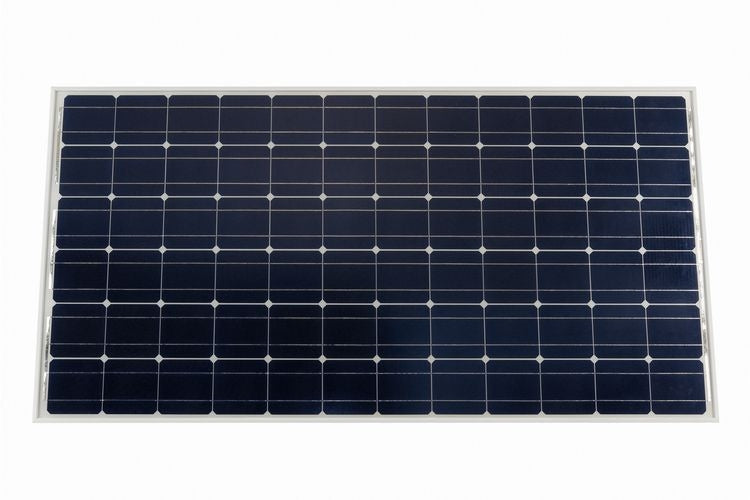

Victron Energy Blue Solar 190w Mono Solar Panel – SPM041903903
Victron Energy Blue Solar 190w Mono Solar Panel – SPM041903903
Couldn't load pickup availability
VICTRON ENERGY BLUE SOLAR 190W SOLAR PANEL – SPM041903903
Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance. • 5-Year limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.
| Watts | 190 |
| Maximum Power Voltage – Vmpp(V) | 19.68 |
| Maximum Power Current – Impp(A) | 9.41 |
| Open Circuit Voltage – Voc(V) | 24.11 |
| Short Circuit Current – Isc (A) | 9.91 |
| Height (mm) | 1485 |
| Width (mm) | 668 |
| Thickness (mm) | 30 |
| Weight (KG) | 11 |
| Cell Type | Mono |
