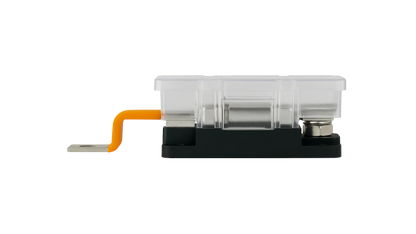

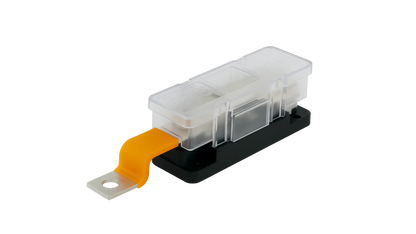

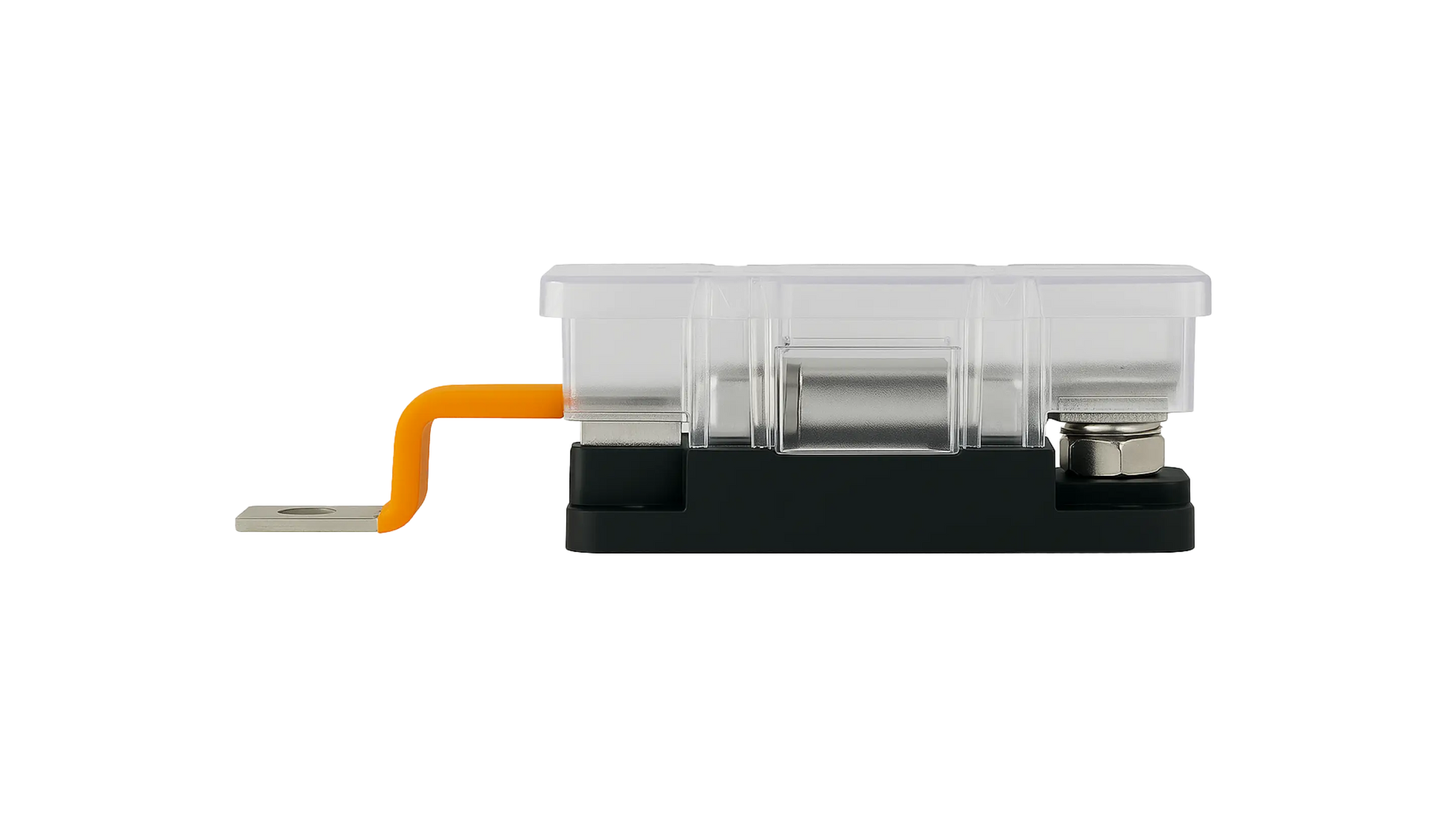

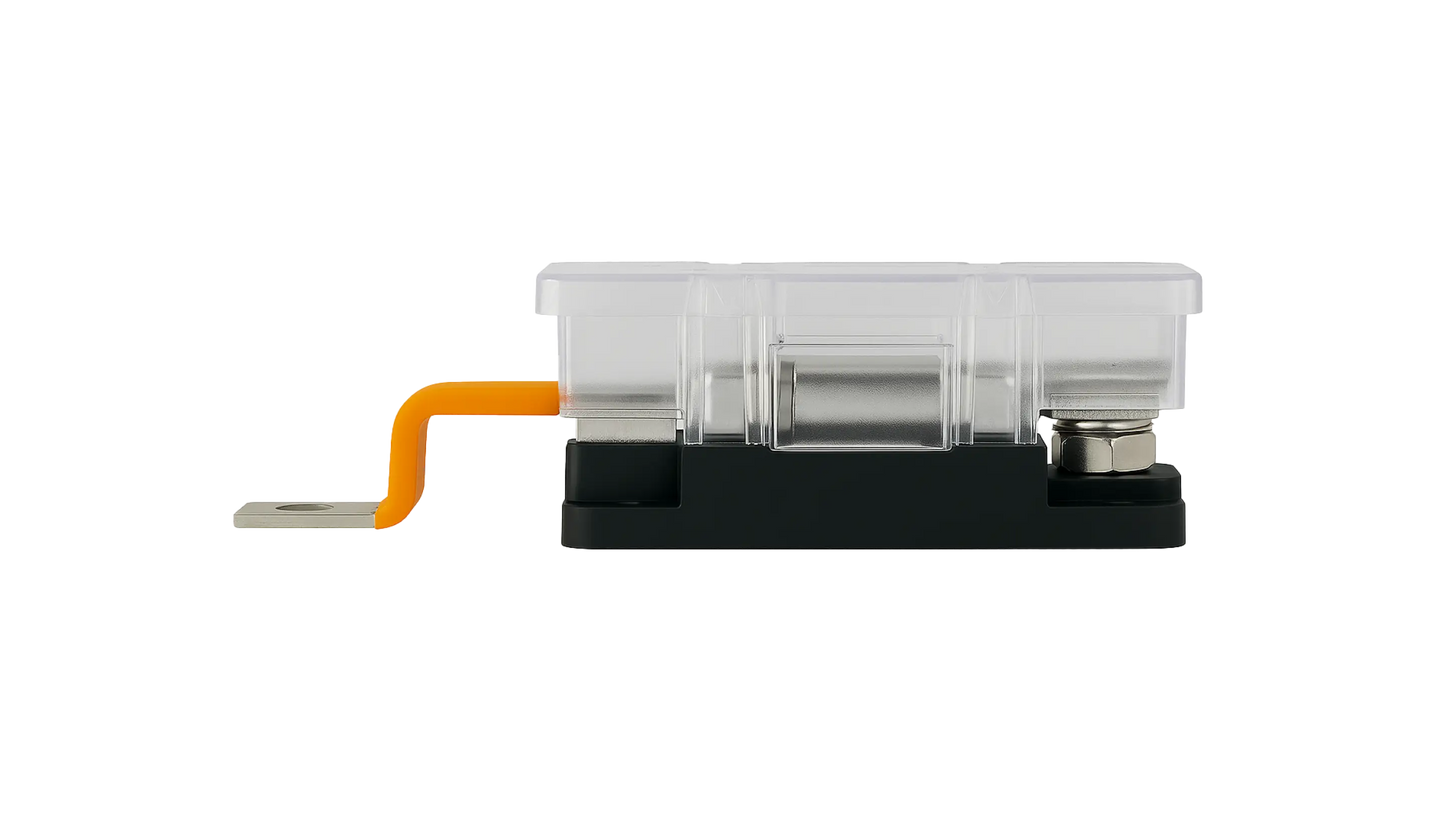

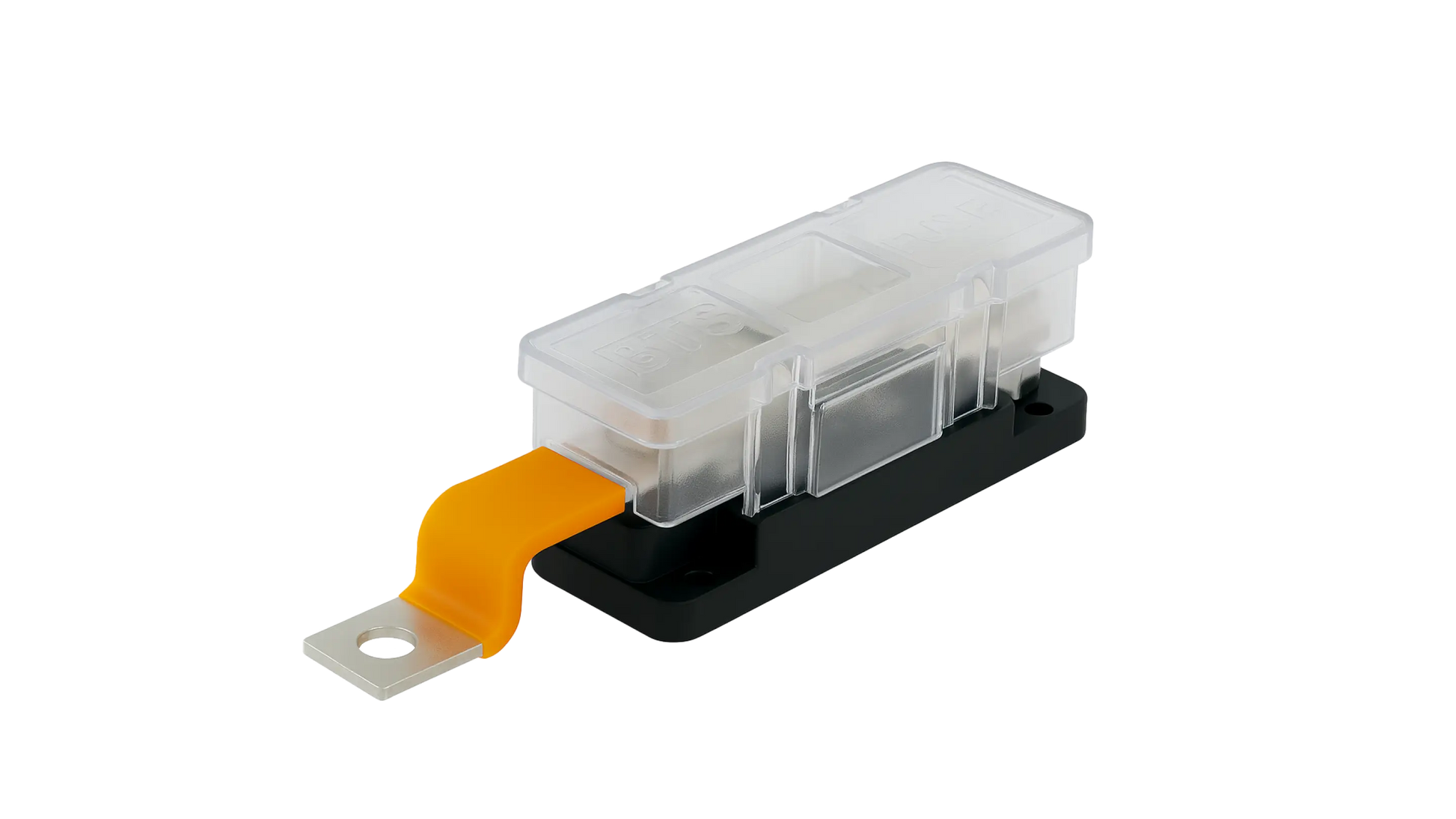

Blue Sea / BEP 225-400A Class-T Fuse, Holder and Busbar Bundle

Class-T fuses are the gold standard in fuses for lithium batteries and Roamer has created a unique Z-Link busbar solution that allows you to mount the fuse and holder directly to the battery terminal. This ensures the safest possible connection, and highest level of protection. We only supply genuine certified products that have been chosen for safety, reliability and compliance.

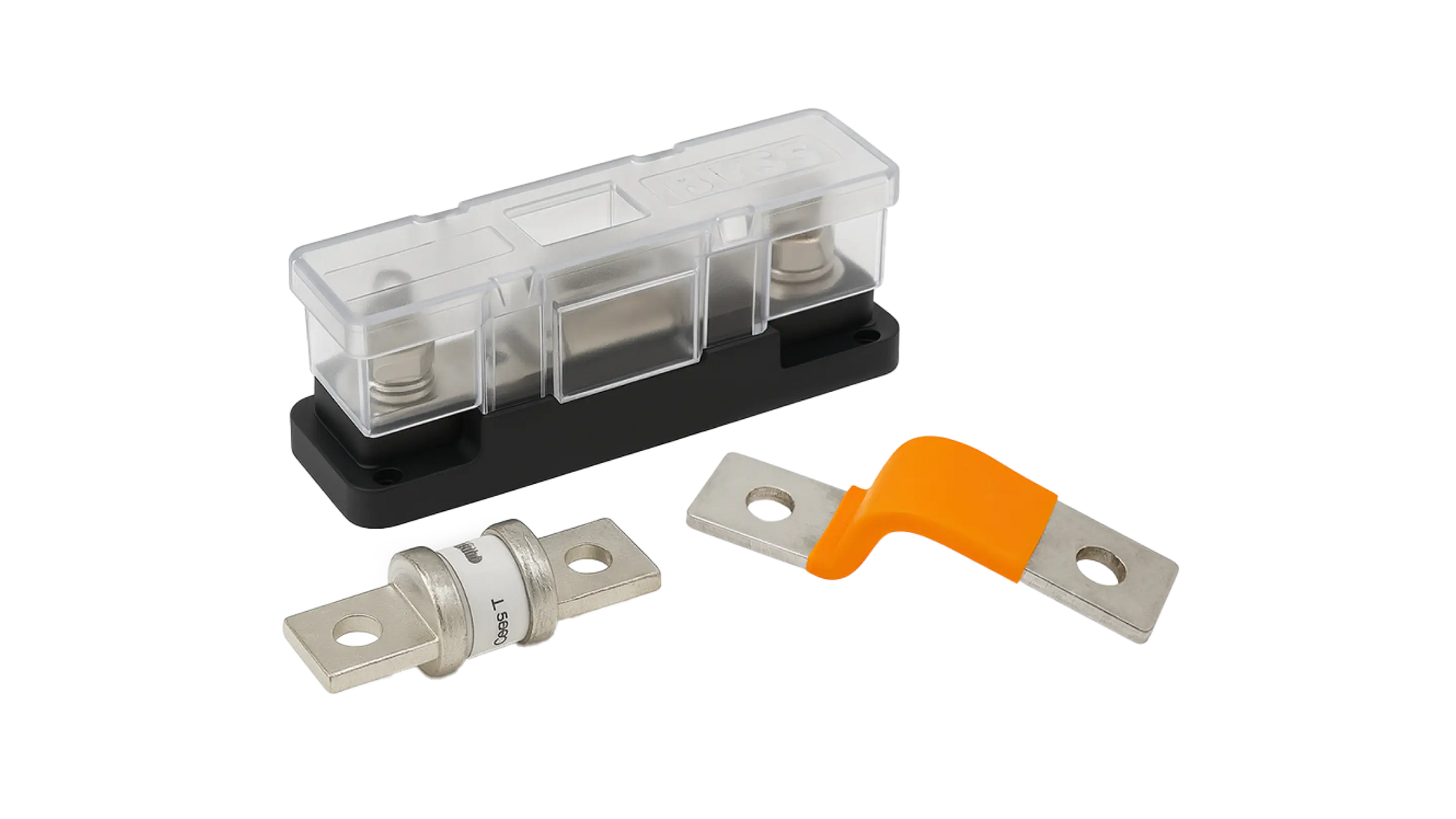

Bundle contains:

• BEP Pro-Installer Class-T Fuse Holder 225-400A
• Blue Sea Fuse A3T (Class-T) 225A - 400A Fuse (5117-BSS, 5119-BSS, 5121-BSS)
• Roamer Class-T Fuse Z-Link Bar
• 2 x 24mm x 150mm 3M VHB mounting pads

The Z-link busbar is flexible tinned copper measuring 4mm x 25mm (100mm2 cross section) with M10 holes at each end to allow fixing to an M8 or M10 battery terminal. It is made from thin layers of copper sheet to allow it to bend in the centre - this gives some flexibility with installation and makes it suitable for a high vibration environment (such as a campervan or boat).

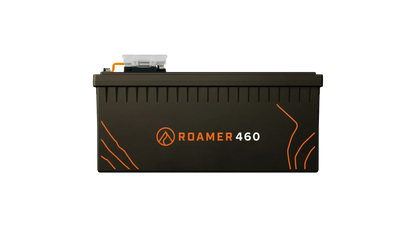

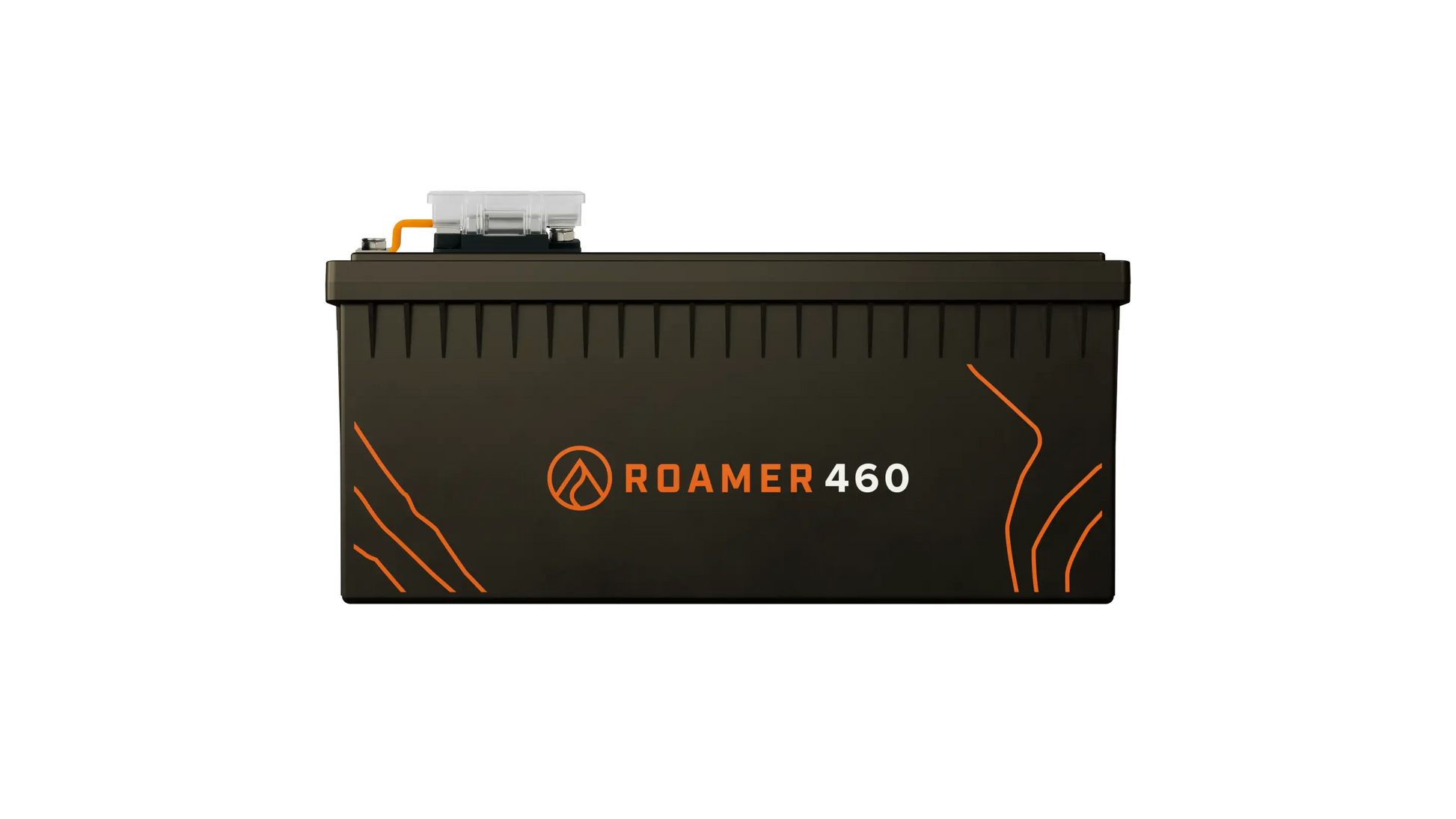

Suitable for use with any Roamer SMART or XTREME battery. The 230SEATBASE and HOME batteries can also be used but the holder will not sit flat on the battery case so you will need additional mounting support if using these batteries.
