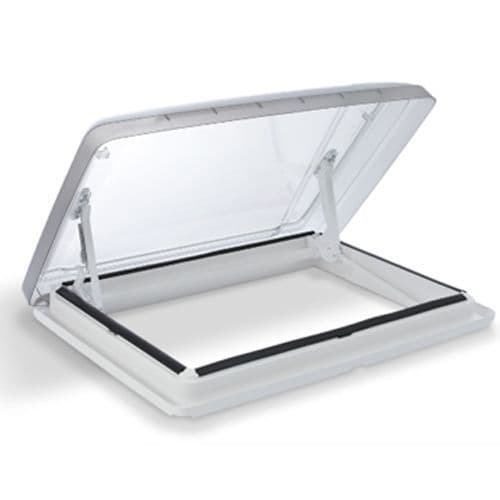

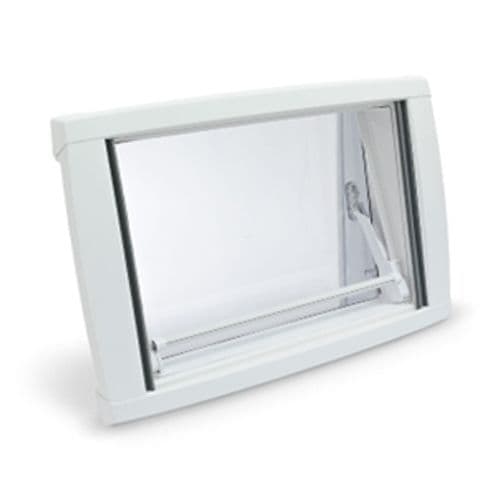

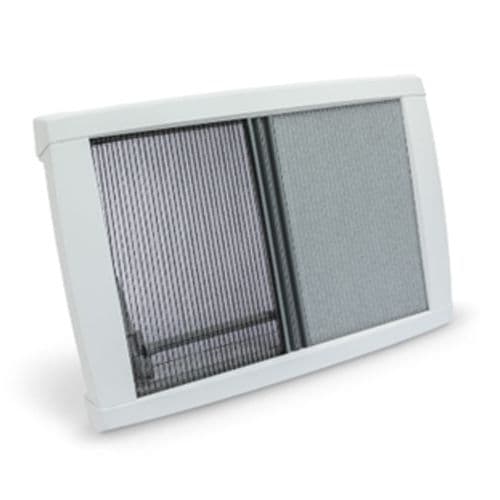

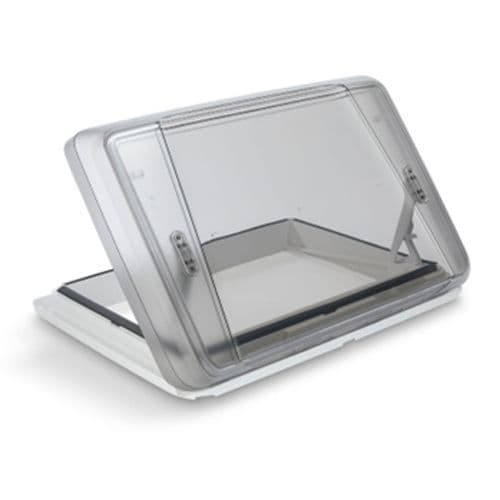

The MPK rooflights from our VisionStar series are flat in design, easy to operate, infinitely adjustable, particularly noise-reducing and ultra-robust. Smoked polycarbonate rooflight with double glazing Without continuous ventilation Attractive interior frame with double pleated blinds Easy one-handed operation with bow handle Steplessly adjustable up to 55 degrees
Technical data
Cut-out dimension
700 X 500 MM
Roof thickness
25 MM TO 60 MM
Corner radius
23 MM
Dome size
815 X 583 MM
Continuous ventilation
X
Height above roof
105 mm
Frame dimensions
872 x 610 x 37 mm
Recommended maximum speed for transverse installation
160 km/h
Recommended maximum speed for longitudinal installation
