Sargent EC30 Control Panel

Sargent EC30 Control Panel

£92.99 GBP
£92.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Title

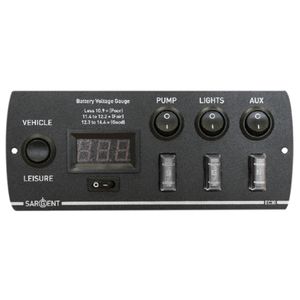

The Sargent EC30 control panel is a general-purpose battery voltage gauge used in caravans and campervans.

The EC30 panel has three 10A 12V switched outputs including pump and lights and is supplied with full wiring diagram and mounting screws.

- 9V to 14.5V DC operation

- 2 x 15A battery inputs

- 3 x 10A switched outputs

- Digital voltmeter with on / off switch

- Panel Dimensions: 193mm x 80mm

- Cutout dimensions: 165mm x 65mm

- Hole centres: 180mm
