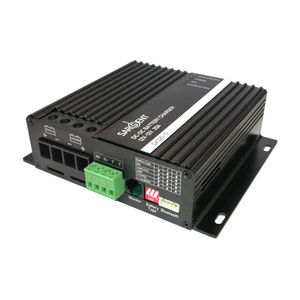

Sargent DC-DC Battery Charger (20A, 3-Stage)

This unit takes power from the vehicle battery and alternator, to provide a rapid multi-stage charging of a leisure battery. It is particularly useful when the base vehicle is fitted with a smart alternator, such as Euro6 vehicles.

The charger can provide up to 20 amps to the leisure battery and uses a 3-stage profile to ensure fast, efficient charging during driving.

The unit can be configured for most leisure battery types, including Lead Acid, Gel, AGM & LiFePO4 (we advise checking compatibility with your battery manufacturer before installing).

This charger also features a rugged extruded casing with intelligent fan cooling to reduce noise.

- Power: 260W (max)

- Input voltage range: 10.5 - 15.4V

- Output voltage: 8 - 16V

- Output current: 20A (max)

- Standby current: 17mA (max)

- Efficiency @12V: 94%

- Engine run (D+) input: Yes
