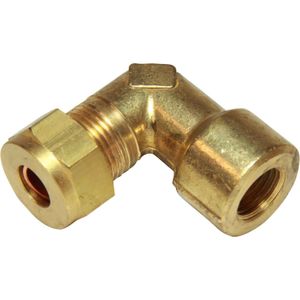

AG Brass Compression Elbow (1/4" BSP Female to 3/8" Compression)

This brass threaded compression elbow features a 1/8" BSP female thread one end and a 3/8" compression pipe connection the other end.

The AG range of 90 degree brass imperial BSP female threaded compression elbows are supplied complete with nuts and annealed copper rings as standard for use with copper tube.

AG 90 degree compression fittings are manufactured to BS 2051 part 2 standards and from materials to all of the following standards - Bar parts: BS EN 12164, CW609N, Stampings: BS EN 12164, CW617N, Castings: BS EN 1982, CC491K, Copper rings: BS EN 12449, CW024A.
