400 X 400 VISION STAR ROOFLIGHT + LED LIGHTS
400 X 400 VISION STAR ROOFLIGHT + LED LIGHTS
Regular price
£198.99 GBP
Regular price
Sale price
£198.99 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

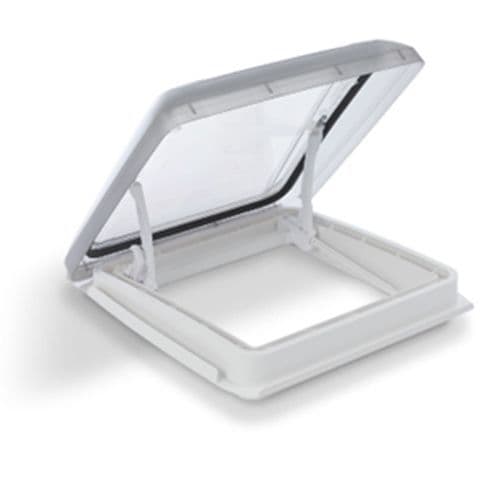

MPK M PRO ROOFLIGHT WITH LIGHTING 400 X 400

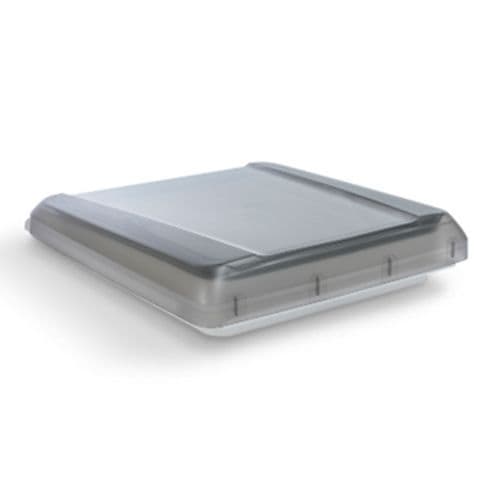

- Smoked polycarbonate rooflight with double glazing
- Without permanent ventilation

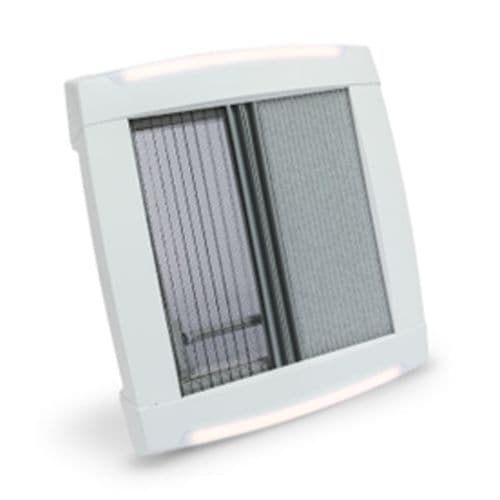

- Interior frame with double pleated blinds
- Steplessly adjustable up to 50 degrees
- Very flat rooflight (only 80 mm above roof)
- Greatly reduced driving noise and draught
- Double-walled frame for better insulation
|
TECHNICAL DATA |
|
|
CUT-OUT DIMENSION |
400 x 400 mm |
|
ROOF THICKNESS |
25 mm to 60 mm |
|
CORNER RADIUS |
28 mm |
|
DOME SIZE |
490 x 470 mm |
|
HEIGHT ABOVE ROOF |
80 |
|
FRAME DIMENSIONS (LED) |
565 x 530 x 35 mm (565 x 570 x 35 mm) |
|
RECOMMENDED MAXIMUM SPEED |
160 km/h |
|
LED light source data |
|
|
Light colour |
~ 3000K |
|
Energy efficiency class |
A+ |
|
Nom. Useful luminous flux |
2 x 390 lm |
|
Mains voltage |
12 to 14V DC |
|
Consumption |
2 x 4,2 kW/h / 1000h |
|
Nominal service life |
10.000 h |
|
Number of switching cycles |
50 |
|
Start-up time until 60% of full brightness is reached |
< 1 sek. |
|
Nomin. Half-value angle (Not suitable for accent lighting) |
60 Degrees |
